Worth Data Model LZ360-RF Wireless Bar Code Laser Scanner
Model: LZ360-RF & B700 Base Station
Worth Data Wireless Rugged Handheld Bar Code Laser Scanner
& B700 USB Base Station
• USB HID Keyboard Input or USB Serial CDC
• Scans Standard 1D Bar Codes - UPC, Code 39, Code 128
• Compatible with Windows® 10, 8, 7, Vista, & XP, plus macOS
• 3 Year Warranty
Without a wire you can scan bar codes from as far away as 500ft from your computer! The US Made LZ360-RF is our rugged cordless laser scanner that transmits scanned bar codes wirelessly to the B700 USB Base Station. These bar code readers are designed and engineered to offer industry leading wireless range and high performance instant scanning in tough industrial environments.
These wireless RF Laser Scanners works just like our corded bar code readers for bar code scanning - scanned bar code data can be input into any application or program, just place the cursor wherever you want bar code data entry, scan a bar code, and the data will appear as keyed data.
|System Interface||Wireless 2.4Ghz Radio Communication to B700 USB Base Station (Enumerates as HID Keyboard or CDC Serial Device)|
|Operating System||Windows® 10, 8, 7, Vista, XP, macOS, Mac OS X, Linux|
|Radio Frequency||2.4Ghz 18.4mw Spread Spectrum Radio|
|RF Transmission Range||Up to 500ft from Laser to Base|
|Beeper Operation||Confirming Beeps for Successful Decodes and for
Successful RF Transmission, Plus 5 Tones
|Indicators (LED)||Tri-Color LED - Green/Decode Orange/Scan, Blue RF|
|Programming||Programming & Setup via Bar Code Setup Menu|
|1D Bar Codes Supported||Code 39, Full ASCII Code 39, UPC-A, UPC-E, EAN-13, EAN-8, ISBN, Code 93, 2 of 5 Standard, ITF Interleaved 2 of 5, Codabar, Code 128, UCC/EAN 128, GS1-128, MSI, Plessey, GS1 DataBar|
|Light Source||650 nm 0.7mW Laser Diode|
|Scan Speed||100 ± 2 scans/sec bidirectional|
|Scan Angle||53º ± 2º|
|Minimum Bar Width||2.7 mil .0027” (0.069mm)|
|Print Contrast||20% minimum reflectance differential|
|Height||Laser: 5.6" (142mm) Base: 1.0” (25mm)|
|Depth||Laser: 4.7" (119mm) Base: 2.5” (63mm)|
|Width||Laser: 3.1" (79mm) Base: .5” (13mm)|
|Weight||Laser: 8.8 oz - 249g Base: 2 oz - 70g|
|Base Station Connection||USB Type A - USB 1.1/2.0 - Windows® 10, 8, 7, Vista, XP, macOS, Mac OS X, Linux|
|Input Voltage||5VDC ± 10% (USB)|
|Battery||2100mAh Rechargeable 3.7V Li-Ion|
|Battery Life||48 Hours Continuous Use or 25,000 Scans Per Charge|
|Recharge Time||3 Hours (Indicated by Red LED)|
|Laser Class||CDRH class II / IEC class 2|
|FCC Class B||Contains FCC ID: QPU3020 IC: 4532A-SN3020|
|Operating Temperature||14ºF to 122ºF (-0ºC to 50ºC)|
|Humidity||5% to 95% non-condensing|
|Ambient Light Immunity||Sunlight: 10,000 ft. candles, Indoor: 450 ft. candles|
|Shock||5’ drop to concrete|
|Warranty||3 Year LIMITED WARRANTY for defects in materials and workmanship|
|Calif Prop 65||WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov|
The Worth Data wireless LZ360-RF Laser scanners have industry leading RF range and can operate up to 500 feet from the B700 USB Base Station in an open area. The LZ360-RF Laser uses a 2.4Ghz frequency-hopping spread spectrum radio to provide excellent interference free coverage and range. Our high performance radio has over 3x the range of common Bluetooth® RF Laser Scanners that are on the market
The LZ360-RF Laser is a "2-Way" Laser Scanner featuring a "confirming" beep on the Laser itself to let the user know that the data was received by the USB RF Base Station.
The cordless convenience makes it safer to scan large items without worrying about tripping hazards, reducing the need to lift or move large items to scan them. The user can easily walk around the item to scan it without the cord limiting movement. This make these scanners perfect for point of sale, manufacturing, project management, retail, wholesale, and supply chain tasks.
Our Wireless bar code scanners are compatible with popular POS, ERP, and Accounting software products like Quickbooks®, Peachtree®, Sage®, Microsoft Dynamics®, plus Microsoft Office® applications including Access® or Excel®.
We design and build these scanners in our California facility enabling us to provide the highest quality and best performing scanners on the market - we are proud to still build bar code scanners in the USA.

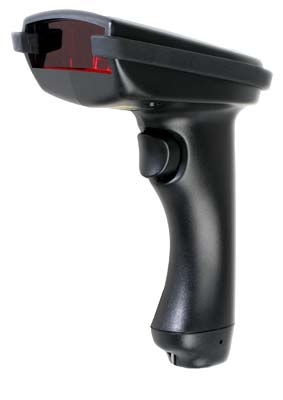

LZ360-RF Laser Scan Gun
The LZ360-RF Laser Scanner is designed to read all types of standard 1D bar codes including high density bar codes. Instantly read tough, worn, damaged, dirty, or even poorly printed bar codes. This scanner reads 0-12 inches from a standard medium density code until a "good read" occurs; since it is scanning at 100 times per second, most reads are instantaneous.
This scanner is designed for tough industrial work environments and is very rugged. The laser housing is built to withstand abuse and is made from a very tough, thick walled polycarbonate/ABS blend — in black to not show stains or dirt. It also has a thick silicone rubber bumper around the top of the gun to further protect it from damage and drops. In addition, there is no external antenna to break or damage. The scanner exit window is recessed, to keep it protected, and is made from scratch resistant coated .060" thick optical acrylic for long life and superior reading performance.
We also designed the LZ360-RF Gun to have industry leading battery life. During normal use the built in Li-ion battery will last for over 48 hours of continuos scanning before it will need to be re-charged — longer than the typical work week — so there is no risk of downtime when using this scanner. In addition, the unit can be recharged in just 3 hours with the included fast recharging power supply.
The LZ360-RF reads all standard 1D bar codes including: UPC/EAN, UCC-EAN 128, Code 39, Full ASCII Code 39, Code 128, Codabar, MSI Plessey, GS1 DataBar variants (RSS-14), GS1-128, ITF Interleaved 2 of 5, Standard 2 of 5, Bookland EAN, and Code 93.The price on the LZ360-RF Laser Scanner without the B700 base is only $399.
B700 USB RF Laser Base Station
The B700 USB RF Laser Base Station connects as a USB keyboard on a computer running Windows or Mac OS with no special software or drivers required. Data is input into the computer as keyboard data, so it is compatible with any application you already have. Just place the cursor wherever you want bar code data to appear and then scan your bar code — it is that simple!
The B700 can also enumerate as a USB CDC RS-232 Serial/COM port device on a Windows PC.
Up to 10 Base stations can operate within range of each other; each B700 USB Base can support up to 10 individual LZ360-RF laser scanners. The B700 USB RF Base Station is $100.00 . No power supply is needed — the Base Station connects directly to a USB port and gets its power from the computer.
A complete single gun system consisting of a LZ360-RF Laser Scanner, B700 USB RF Base Station is only $399.00 with free shipping to the USA or Canada!
|B700 Base||B700 USB Base Station|
|F10||Worth Data 5V/110 Replacement Recharging Power Supply (Power supply is included standard with each LZ360-RF Laser Purchased)|
